Product Summary
The MMAD1108 is a 8 Diode Array. The mechanical of the MMAD1108 are: Molded SOIC 16 Pin. Weight: 0.128 grams (approximate). Marking: Logo, device number, date code. Pin #1 defined by DOT on top of package.
Parametrics
MMAD1108 maximum ratings: (1)Operating Temperatures: -55℃ to +150℃; (2)Storage Temperature: -55℃ to +150℃; (3)Forward Surge Current: 2.0 Amps (8.3 mS); (4)Minimum Breakdown Voltage V(BR): 90V; (5)Working Peak Reverse Voltage VRWM: 75V; (6)Continuous forward current IF: 40 mA; (7)Power dissipation (PD): 500 mW; (8)Derating factor: 4.0 mW/℃.
Features
MMAD1108 feastures: (1)8 Diode Array; (2)SOIC 16 pin Surface Mount Package; (3)UL 94V-0 Flammability Classification.

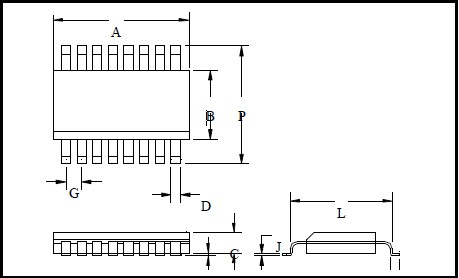

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MMAD1108 |
Other |
|
Data Sheet |
Negotiable |
|
||||||
