Product Summary

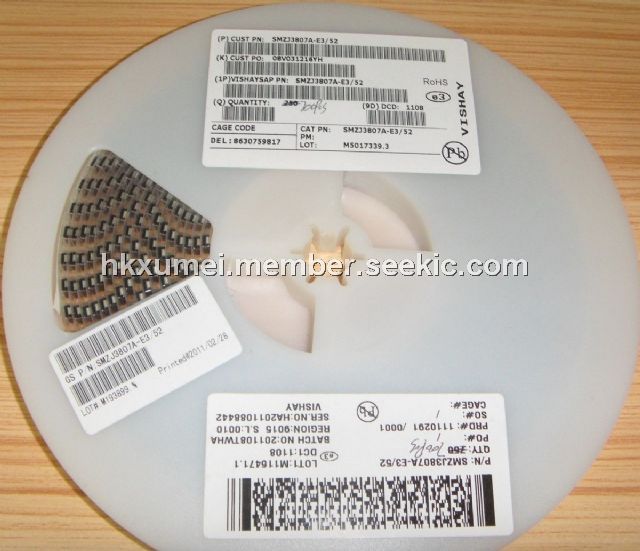

The SMZJ3807A-E3/52 is a surface mount zener diode.
Parametrics
SMZJ3807A-E3/52 absolute maximum ratings: (1)nominal zener voltage VZ at IZT: 56.0 V; (2)test current IZT: 6.7 mA; (3)max. zener impedance: 70 Ohms; (4)max. reverse leakage current: 5.0 μA; (5)max. zener current: 22 mA.
Features
SMZJ3807A-E3/52 features: (1)Plastic package has Underwriters Laboratory Flammability Classification 94V-0; (2)For surface mount applications; (3)Glass passivated chip junction; (4)Low Zener impedance; (5)Low regulation factor; (6)High temperature soldering guaranteed: 250℃/10 seconds at terminals.

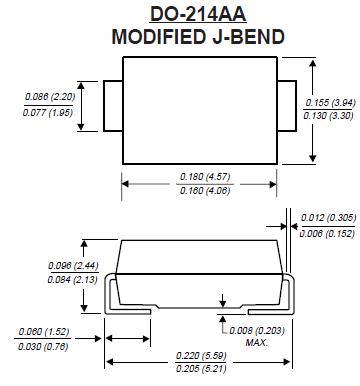

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 SMZJ3807A-E3/52 |
Vishay Semiconductors |
Zener Diodes 56 Volt 1.5W 10% |
Data Sheet |
Negotiable |
|
||||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||||
|
SMZJ3788A/52 |
Vishay Semiconductors |
Zener Diodes 9.1 Volt 1.5W 10% |
Data Sheet |
Negotiable |
|
||||||||||||||
|
SMZJ3788A/5B |
Vishay Semiconductors |
Zener Diodes 9.1 Volt 1.5W 10% |
Data Sheet |
Negotiable |
|
||||||||||||||
 |
SMZJ3789A,B |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||||
|
SMZJ3790BHE3/5B |
Vishay Semiconductors |
Zener Diodes 1.5 Watt 11 Volt 5% |
Data Sheet |
|
|
||||||||||||||
|
SMZJ3790B-E3/52 |
Vishay Semiconductors |
Zener Diodes 11 Volt 1.5W 5% |
Data Sheet |
|
|
||||||||||||||
|
SMZJ3789BHE3/55 |
Vishay Semiconductors |
Zener Diodes 1.5 Watt 10 Volt 5% |
Data Sheet |
Negotiable |
|
||||||||||||||
