Product Summary

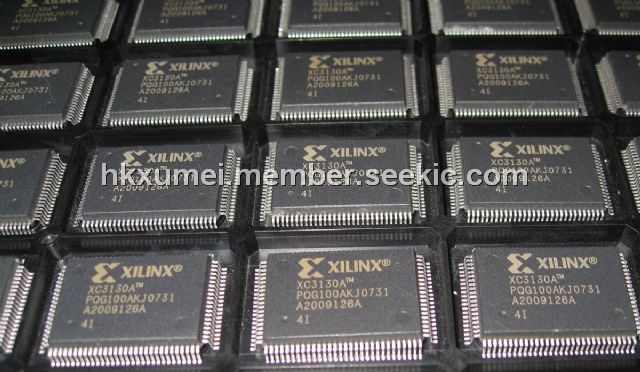

The XC3130A-4PQG100I is a Logic Cell Array (LCA). It provides a group of high-performance, high-density, digital integrated circuits. Their regular, extendable, flexible, user-programmable array architecture is composed of a configuration program store plus three types of configurable elements: a perimeter of I/O Blocks (IOBs), a core array of Configurable Logic Bocks (CLBs) and resources for interconnection. The XC3130A-4PQG100I XACT development system provides schematic capture and auto place-and-route for design entry. Logic and timing simulation, and in-circuit emulation are available as design verification alternatives. The design editor of XC3130A-4PQG100I is used for interactive design optimization, and to compile the data pattern that represents the configuration program.
Parametrics
XC3130A-4PQG100I absolute maximum ratings: (1)VCC Supply voltage relative to GND: –0.5 to +7.0 V; (2)VIN Input voltage with respect to GND: –0.5 to VCC +0.5 V; (3)VTS Voltage applied to 3-state output: –0.5 to VCC +0.5 V; (4)TSTG Storage temperature (ambient): –65 to +150℃; (5)TSOL Maximum soldering temperature (10 s @ 1/16 in.): +260 ℃; (6)TJ, Junction temperature plastic: +125℃; Junction temperature ceramic: +150℃.
Features
XC3130A-4PQG100I features: (1)Compatible arrays ranging from 1,000 to 7,500 gate complexity; (2)Extensive register, combinatorial, and I/O capabilities; (3)High fan-out signal distribution, low-skew clock nets; (4)Internal 3-state bus capabilities; (5)TTL or CMOS input thresholds; (6)On-chip crystal oscillator amplifier; (7)Guaranteed toggle rates of 70 to 325 MHz, logic delays from 9 to 2.2 ns; (8)System clock speeds over 80 MHz; (9)Low quiescent and active power consumption; (10)Easy design iteration; (11)In-system logic changes; (12)Standard, off-the-shelf product availability; (13)100% factory pre-tested devices; (14)Excellent reliability record.
