The enhanced Z8018010VSG significantly improves on the previous Z80180 models while still providing full backward compatibility with existing Zilog Z80 devices. The Z8018010VSG now offers faster execution speeds, power saving modes, and EMI noise reduction. This enhanced Z180 design also incorporates additional feature enhancements to the ASCIs, DMAs, and Icc STANDBY Mode power consumption. With the addition of "ESCC-like" Baud Rate Generators (BRGs), the two ASCIs now have the flexibility and capability to transfer data asynchronously at rates of up to 512 Kbps. In addition, the ASCI receiver has added a 4-byte First In First Out (FIFO) which can be used to buffer incoming data to reduce the incidence of overrun errors. The DMAs have been modified to allow for a "chain-linking" of the two DMA channels when set to take their DMA requests from the same peripherals device.
Parametrics
Z8018010VSG absolute maximum ratings: (1)Supply Voltage Vcc -0.3 ~ +7.0 V; (2)Input Voltage Vin -0.3 ~ Vcc +0.3 V; (3)Operating Temperature Topr 0 ~ 70 ℃; (4)Extended Temperature Text -40 ~ 85 ℃; (5)Storage Temperature Tstg -55 ~ +150 ℃.
Features

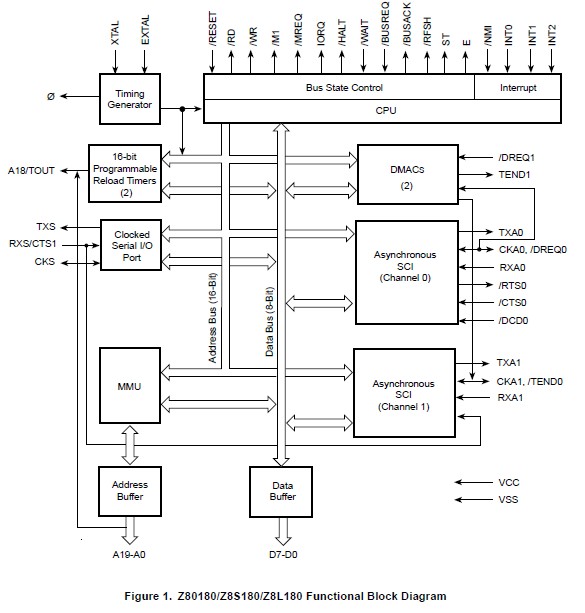

Z8018010VSG features: (1)Code Compatible with Zilog Z80 CPU; (2)Extended Instructions; (3)Two Chain-Linked DMA Channels; (4)Low Power-Down Modes; (5)On-Chip Interrupt Controllers; (6)Three On-Chip Wait-State Generators; (7)On-Chip Oscillator/Generator; (8)Expanded MMU Addressing (up to 1 MB); (9)Clocked Serial I/O Port.
