Product Summary

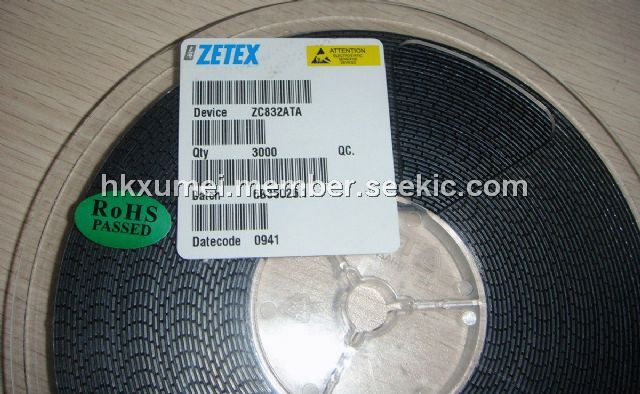

The ZC832ATA is a silicon varactor diode. It is intended for use in frequency control and filtering. The ZC832ATA Features closely controlled CV characteristics and high Q. Low reverse current ensures very low phase noise performance. It is Available in single or dual common cathode format in a wide rage of miniature surface mount packages. The applications of the ZC832ATA include VCXO and TCXO, Wireless communications, Pagers and Mobile radio.
Parametrics
ZC832ATA absolute maximum ratings: (1)Forward current IF: 200mA; (2)Power dissipation at Tamb = 25℃, Ptot: 330mW; (3)Operating and storage temperature range -55 to +150℃.
Features
ZC832ATA features: (1)Close tolerance CV characteristics; (2)High tuning ratio; (3)Low IR (typically 200pA); (4)Excellent phase noise performance; (5)High Q; (6)Range of miniature surface mount packages.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 ZC832ATA |
Diodes Inc. / Zetex |
Varactor Diodes Varicap Tuner |
Data Sheet |
Negotiable |
|
||||
