ATTINY26L-8SC

Product Summary

The ATTINY26L-8SC is a low-power CMOS 8-bit microcontroller based on the AVR enhanced RISC architecture. By executing powerful instructions in a single clock cycle, the ATTINY26L-8SC achieves throughputs approaching 1 MIPS per MHz allowing the system designer to optimize power consumption versus processing speed. The AVR core combines a rich instruction set with 32 general purpose working registers. All the 32 registers are directly connected to the Arithmetic Logic Unit (ALU), allowing two independent registers to be accessed in one single instruction executed in one clock cycle. The resulting architecture is more code efficient while achieving throughputs up to ten times faster than conventional CISC microcontrollers. The ATTINY26L-8SC has a high precision ADC with up to 11 single ended channels and 8 differential channels. Seven differential channels have an optional gain of 20x. Four out of the seven differential channels, which have the optional gain, can be used at the same time. The ATTINY26L-8SC also has a high frequency 8-bit PWM module with two independent outputs. Two of the PWM outputs have inverted non-overlapping output pins ideal for synchronous rectification. The Universal Serial Interface of the ATTINY26L-8SC allows efficient software implementation of TWI (Two-wire Serial Interface) or SM-bus interface. These features allow for highly integrated battery charger and lighting ballast applications, low-end thermostats, and firedetectors, among other applications.

Parametrics

ATTINY26L-8SC absolute maximum ratings: (1)Operating Temperature: -55℃ to +125℃; (2)Storage Temperature: -65℃ to +150℃; (3)Voltage on Any Pin except RESET with Respect to Ground: -0.5V to VCC + 0.5V; (4)Voltage on RESET with Respect to Ground: -0.5V to +13.0V; (5)Maximum Operating Voltage: 6.0V; (6)DC Current per I/O Pin: 40.0 mA; (7)DC Current VCC and GND Pins: 200.0 mA.

Features

ATTINY26L-8SC features: (1)High-performance, Low-power AVR ?8-bit Microcontroller; (2)RISC Architecture: 118 Powerful Instructions ?Most Single Clock Cycle Execution, 32 x 8 General Purpose Working Registers, Fully Static Operation, Up to 16 MIPS Throughput at 16 MHz; (3)Data and Non-volatile Program Memory: 2K Bytes of In-System Programmable Program Memory Flash Endurance: 10,000 Write/Erase Cycles, 128 Bytes of In-System Programmable EEPROM Endurance: 100,000 Write/Erase Cycles, 128 Bytes Internal SRAM, Programming Lock for Flash Program and EEPROM Data Security; (4)Peripheral Features: 8-bit Timer/Counter with Separate Prescaler, 8-bit High-speed Timer with Separate Prescaler.

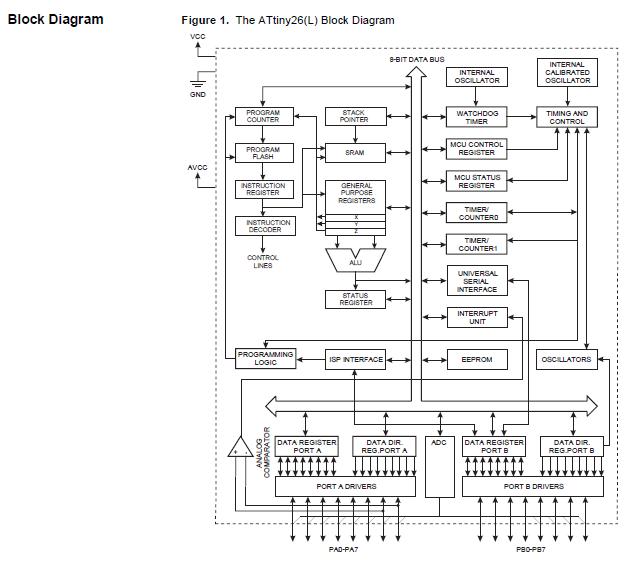

Diagrams
