Product Summary

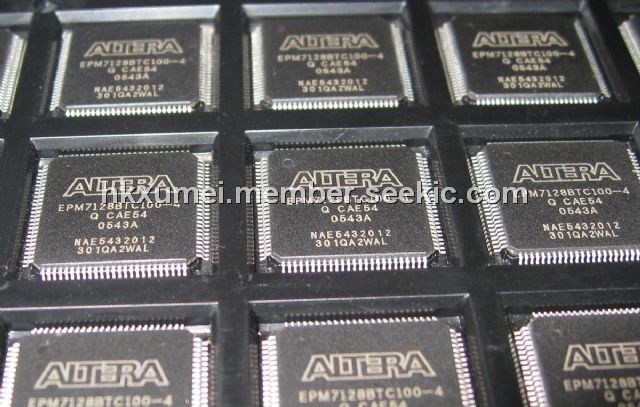

The EPM7128BTC100-4 is a high-density, high-performance PLD, which is based on the second-generation MAX architecture of Altera. Fabricated with advanced CMOS technology, the EPM7128BTC100-4 operates with a 2.5-V supply voltage and provide 600 to 10,000 usable gates, ISP, pin-to-pin delays as fast as 3.5 ns, and counter speeds up to 303.0 MHz.
Parametrics
EPM7128BTC100-4 maximum ratings: (1)Supply voltage: –0.5 to 3.6 V; (2)DC input voltage: –2.0 to 4.6 V; (3)DC output current, per pin: –33 to 50 mA; (4)Storage temperature No bias –65 to 150℃; (5)Ambient temperature Under bias: –65 to 135℃; (6)Junction temperature: under bias, –65 to 135℃.
Features
EPM7128BTC100-4 features: (1)Advanced 2.5-V in-system programmability (ISP); (2)System-level features; (3)Programmable interconnect array (PIA) continuous routing; (4)structure for fast, predictable performance; (5)Configurable expander product-term distribution, allowing up; (6)to 32 product terms per macrocell; (7)Programmable macrocell registers with individual clear, preset,; (8)clock, and clock enable controls; (9)Advanced package options; (10)Advanced software support.

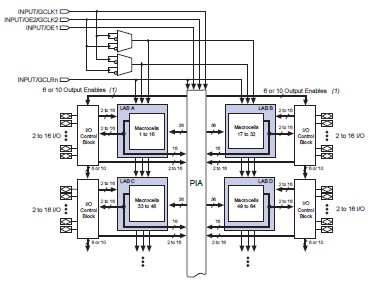

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 EPM7128BTC100-4 |
|
IC MAX 7000 CPLD 128 100-TQFP |
Data Sheet |
|
|
||||||
|
EPM7128BTC100-4N |
|
IC MAX 7000 CPLD 128 100-TQFP |
Data Sheet |
|
|
||||||
