Product Summary
The XC3020-70PC84I belongs to the CMOS XC3000 Class of Logic Cell Array (LCA) family, which provides a group of high-performance, high-density, digital integrated circuit. The regular, extendable, flexible, user-programmable array architecture of the XC3020-70PC84I is composed of a configuration program store plus three types of configurable elements: a perimeter of I/O Blocks (IOBs), a core array of Configurable Logic Bocks (CLBs) and resources for interconnection.
Parametrics
XC3020-70PC84I maximum ratings: (1)Supply voltage relative to GND: –0.5 to +7.0 V; (2)Input voltage with respect to GND: –0.5 to VCC +0.5 V; (3)VTS Voltage applied to 3-state output: –0.5 to VCC +0.5 V; (4)Storage temperature (ambient) –65 to +150 ℃; (5)Maximum soldering temperature: +260℃; (6)Junction temperature plastic: +125℃; (7)Junction temperature ceramic: +150℃.
Features
XC3020-70PC84I features: (1)Ideal for a wide range of custom VLSI design tasks; (2)High-performance CMOS static memory technology; (3)Flexible FPGA architecture; (4)Unlimited reprogrammability; (5)Extensive Packaging Options; (6)Ready for volume production; (7)Complete XACT Development System.

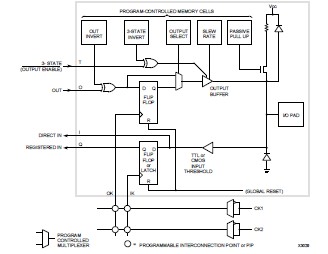

Diagrams
 |
