Product Summary
The XCS20-3TQG144I belongs to Spartan-XL family, which is a high-volume production FPGA solution that delivers all the key requirements for ASIC replacement up to 40,000 gates. These requirements include high performance, on-chip RAM, core solutions and prices that, in high volume, approach and in many cases are equivalent to mask programmed ASIC devices.
Parametrics
XCS20-3TQG144I maximum ratings: (1)Supply voltage relative to GND: –0.5 to +7.0 V; (2)Input voltage relative to GND(2,3): –0.5 to VCC +0.5 V; (3)Voltage applied to 3-state output(2,3): –0.5 to VCC +0.5 V; (4)Storage temperature (ambient): –65 to +150 ℃; (5)Junction temperature, Plastic packages: +125℃.
Features
XCS20-3TQG144I features: (1)First ASIC replacement FPGA for high-volume production with on-chip RAM; (2)Density up to 1862 logic cells or 40,000 system gates; (3)Streamlined feature set based on XC4000 architecture; (4)System performance beyond 80 MHz; (5)Fully PCI compliant; (6)Full readback capability for program verification and internal node observability; (7)Dedicated high-speed carry logic; (8)Internal 3-state bus capability.

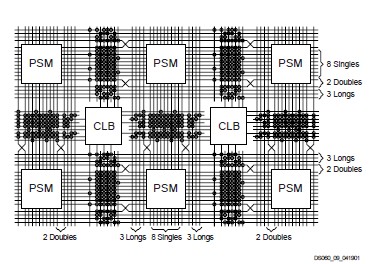

Diagrams
 |
 XCS20 and XCS20XL |
Other |
|
Data Sheet |
Negotiable |
|
||||
 |
XCS20-3PQ208C |
|
IC FPGA 5V C-TEMP 208-PQFP |
Data Sheet |
Negotiable |
|
||||
|
XCS20-3PQ208I |
|
IC FPGA 5V I-TEMP 208-PQFP |
Data Sheet |
Negotiable |
|
||||
|
XCS20-3TQ144C |
|
IC FPGA 5V C-TEMP 144-TQFP |
Data Sheet |
Negotiable |
|
||||
|
XCS20-3TQ144I |
|
IC FPGA 5V I-TEMP 144-TQFP |
Data Sheet |
Negotiable |
|
||||
|
XCS20-3VQ100C |
|
IC FPGA 5V C-TEMP 100-VQFP |
Data Sheet |
Negotiable |
|
||||
