Product Summary
The S5935QF is a PCI 5V Bus Master/Target device, which is developed to break the PC data I/O bottleneck and clearly opens the door to increasing system speed and expansion capabilities. The S5935QF PCI Local bus moves high speed peripherals from the I/O bus and places them closer to the processor bus, providing faster data transfers between the processor and peripherals. The applications of the S5935QF include: High Speed Networking, Digital Video Applications, I/O Communications Ports, High Speed Data Input/Output and so on.
Parametrics
S5935QF maximum ratings: (1)Storage Temperature: –55 to 125 ℃; (2)Supply Voltage (V CC): –0.3 to 7.0 Volts; (3)Input Pin Voltage: –0.5 to VCC + 5.0 Volts; (4)Power Dissipation: 1.05Watts @33 MHz.
Features
S5935QF features: (1)PCI 2.1 Compliant Master/Slave Device; (2)Full 132 Mbytes/sec Transfer Rate; (3)Supports new Intel 440BX/GX Chipsets; (4)Supports new WinNT Service Pack 2 and 3; (5)PCI Bus Operation DC to 33 MHz; (6)8/16/32 Bit Add-On User Bus; (7)Four Definable Pass-Thru Data Channels; (8)Two 32 Byte Internal FIFOs w/DMA; (9)Synchronous Add-On Bus Operation; (10)Mail Box Registers w/Byte Level Status.

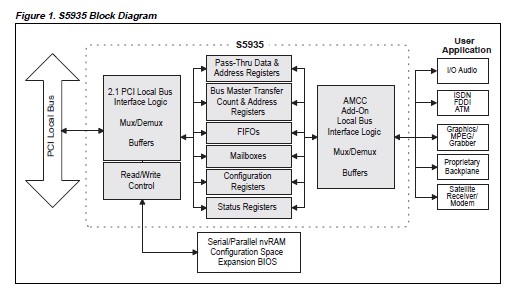

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 S5935QF |
Other |
|
Data Sheet |
Negotiable |
|
||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||
|
S5933 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
S5935 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
S5935QF |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
S593T |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
S593TR |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
S593TRW |
Other |
|
Data Sheet |
Negotiable |
|
||||
